Corrugated Profile Sheets

10/3" Corrugated Sheet

With a shallow 19mm deep profile and superb galvanised or plastisol coated steel finish, this corrugated sheet delivers an attractive, durable solution for roof or wall applications.

Send Enquiry Corrugated Sheets
762mm Cover Width 19mm Profile Height Galvanised & Plastisol Curving Available Cut to Length - Up to 9m Made in Britain 762mm Cover Width 19mm Profile Height Galvanised & Plastisol Curving Available Cut to Length - Up to 9m Made in Britain
10/3 inch Corrugated Sheet
Galvanised
British Made Cut to Length Fast Delivery Curving Available

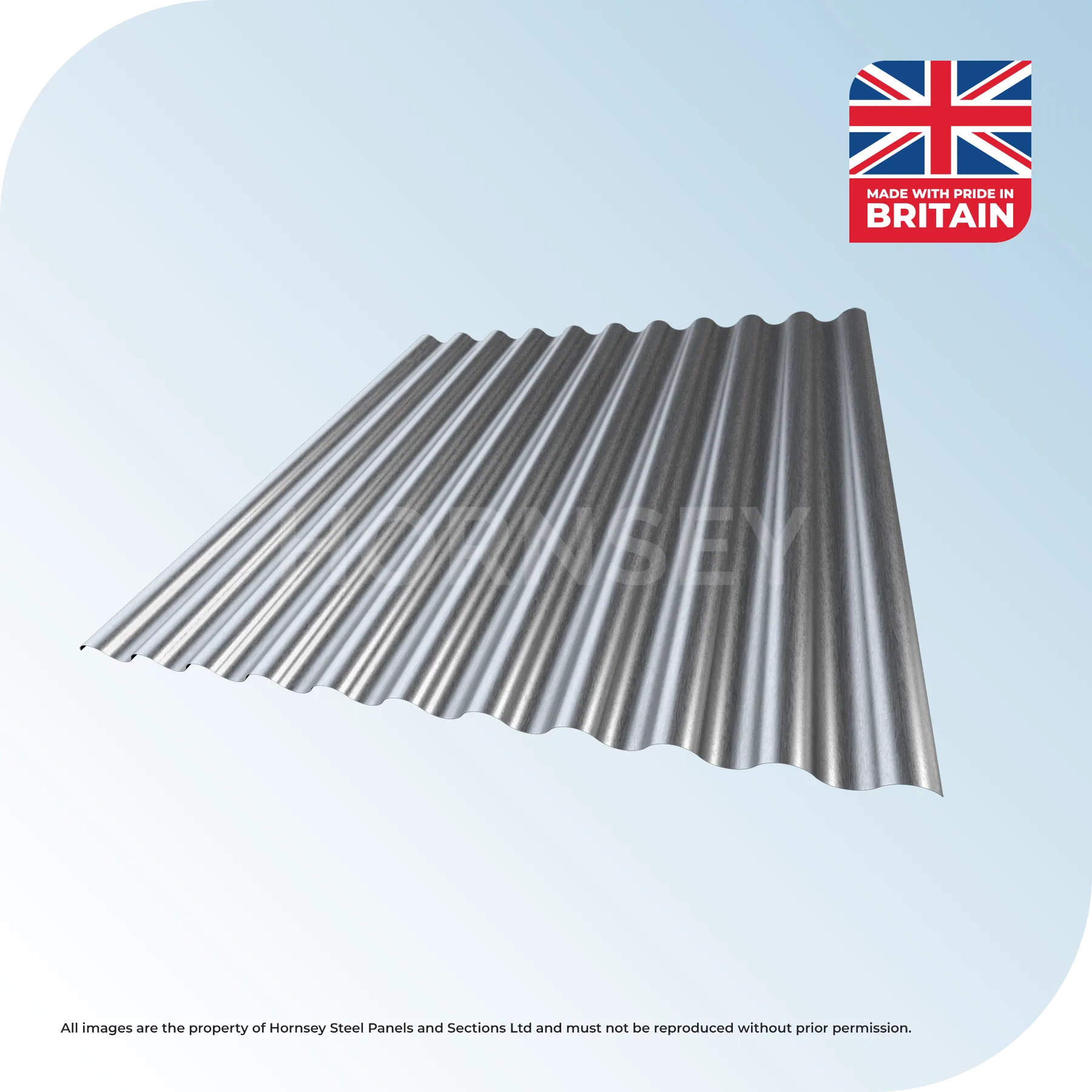

10/3" Corrugated Sheet

Our 10/3" corrugated metal sheets (also called sinusoidal single skin sheets) feature one of the most traditional corrugated profiles used in the UK. With an attractive shallow profile, these sheets provide excellent stability and a versatile finish, whilst ensuring straightforward and rapid installation.

  • Custom Lengths: Cut to the exact size you need up to a maximum sheet length of 9 metres, reducing waste and making installation easier
  • Strong & Durable: Available in 0.5mm and 0.7mm gauge steel, designed to handle the elements year after year
  • Colour & Finish Options: Available in a traditional galvanised finish in both 0.7mm and 0.5mm gauges, as well as Standard plastisol in 0.7mm only (Juniper Green and Jet Black)
  • Compact Coverage: Each sheet has a 762mm cover width, making handling and installation quick and easy. Ideal for smaller roof areas or more traditional detailing
  • Part of a Wider Corrugated Range: Also available in 8/3" and 13.5/3" corrugated profiles to suit different coverage and project requirements
  • Curving Capabilities: This corrugated profile can be smooth curved in 0.7mm gauge to suit your requirements (dependent upon radius)
  • Complete Your Project: A full range of flashings, fixings, fillers and accessories are available to make installation simple and professional

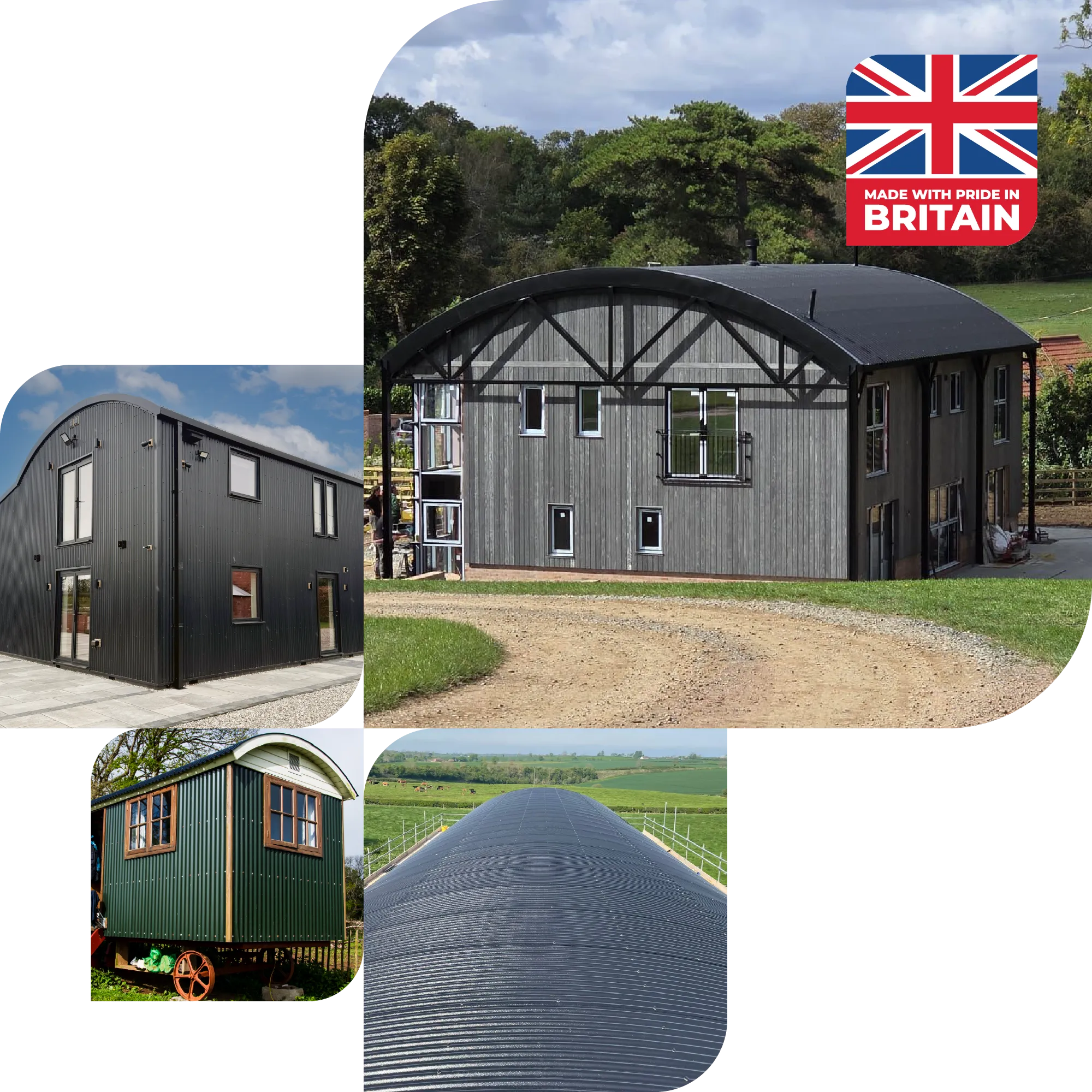

From domestic projects to agricultural or industrial applications, these sheets are designed to deliver a classic corrugated look with dependable performance.

Send Enquiry Try Our Free Calculators

At a Glance

Suitable For
Roof & Wall
Cover Width
762mm
Profile Height
19mm
Sheet Pitch
76mm
Corrugations
10 Crowns (when fitted)
Thickness
0.5mm, 0.7mm
Available Finishes
Galvanised, Standard Plastisol
Colour Options
Galvanised (0.5mm & 0.7mm), Juniper Green & Jet Black (0.7mm only)
Custom Length
500mm - 9,000mm
Anti-Condensation
Not Available
