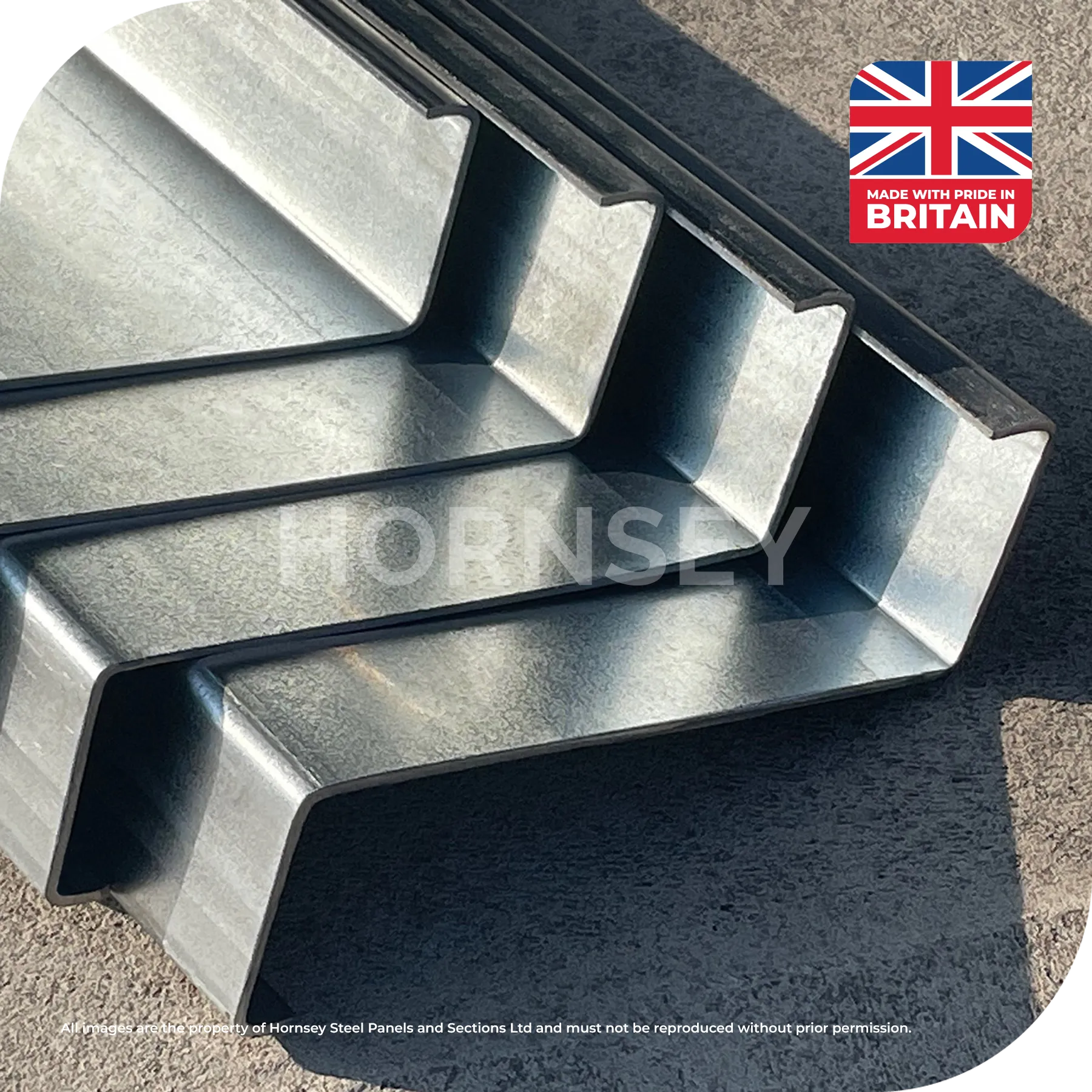

We manufacture a fully compatible range of steel Zed section purlins in depths ranging from 123mm to 343mm deep.
At Hornsey Steel Panels and Sections Ltd, our Zed section purlins are designed to deliver exceptional strength, efficiency, and reliability on every project. Manufactured with precision and consistency, our Zeds provide the structural performance demanded by modern agricultural, industrial, and commercial buildings.
Engineered for quick installation, our Zed purlins offer an ideal balance of strength-to-weight performance without compromising structural integrity, making them a practical and cost-effective solution for roof and wall applications.
Produced using high-quality steel and tight manufacturing tolerances, Hornsey Steel Zed purlins are available in section depths ranging from 123mm to 343mm, and gauges from 1.3mm to 3mm. Our sections are available pre-punched and cut to a maximum length of 12 metres (up to 15 metres by request) along with a wide range of compatible accessories.
* Figures in bold are our standard core product range. Products outside this range may be subject to extended lead times.

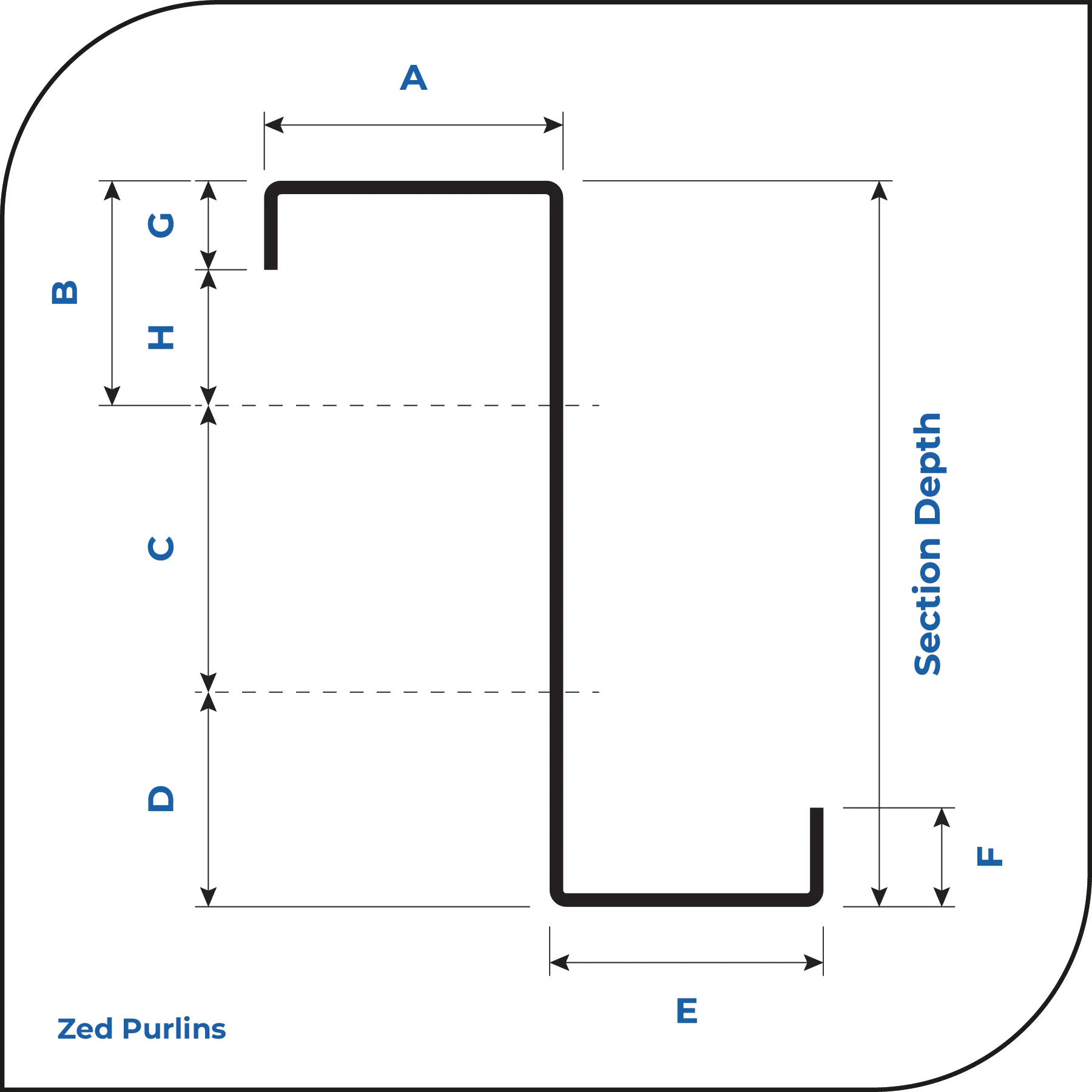

| Section Depth (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) |
|---|---|---|---|---|---|---|---|---|
| 123* | 58 | 44 | 37 | 42 | 53 | 19 | 17 | 27 |
| 143* | 58 | 44 | 57 | 42 | 53 | 19 | 17 | 27 |
| 153 | 58 | 44 | 67 | 42 | 53 | 19 | 17 | 27 |
| 163 | 63 | 44 | 77 | 42 | 58 | 19 | 17 | 27 |
| 173* | 63 | 44 | 87 | 42 | 58 | 19 | 17 | 27 |
| 203* | 63 | 44 | 117 | 42 | 58 | 19 | 17 | 27 |
| 233* | 63 | 44 | 147 | 42 | 58 | 19 | 17 | 27 |
| 263 | 63 | 44 | 177 | 42 | 58 | 19 | 17 | 27 |
| 303 | 90 | 55 | 196 | 52 | 82 | 19 | 17 | 38 |
| 343 | 90 | 55 | 236 | 52 | 82 | 19 | 17 | 38 |
All illustrations and dimensions given are for guidance only.
Our complete range of purlins and sections have been assessed by the Steel Construction Institute.
Not sure which depth or gauge suits your project? Our team can talk you through the options.
Send EnquiryUse our free sizing calculators to help plan your roof or wall project.
Sizing CalculatorsThese products are ideal for a wide variety of construction scenarios where both high strength and low weight are critical considerations. Tailored to specific applications, our steel roof and wall purlins and sections are designed and manufactured to comply with the appropriate performance standards, including British Standards and Eurocodes, and are marked with the appropriate UKCA and CE certifications.
Here you will find details of our complete range of Zed section purlins, Cee sections, Mezzanine beams plus both Flat Face and Recessed Eaves beams.
